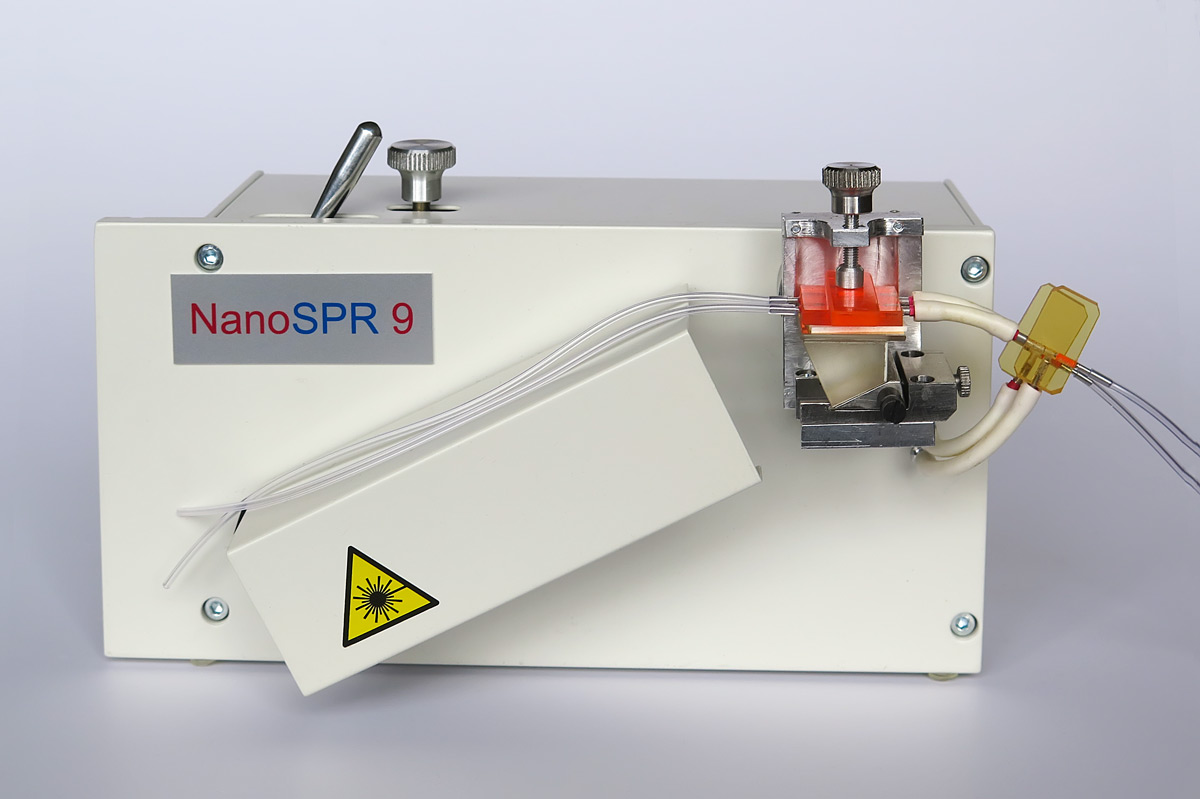

NanoSPR9 Surface Plasmon Resonance Spectrometer with 2 channels
•Cost effective solution with open optical design
•Slope mode measurements with adjustable angle shift from the minima
•Carrying out real time biokinetic, immunosensing and biosensing measurement techniques
•Studies of adsorption, corrosion, electrochemical reactions
Description
Catalog number
Price
Dual Channel Electrochemical Surface Plasmon Resonance Spectrometer
B00121
email sales for quote
System Specifications
Number of Optical channels:
2
Refractive index measurement range
1.0 – 1.15 and 1.3 – 1.6
Refractive index sensitivity
0.00002
Measurement mode
Slope
Minimal time between measurements
0.2 sec
Light source
GaAs semiconductor laser (l=650 nm)
Overall dimensions of the measurement unit
7.6×4.6×4.6 in. (190x115x115 mm)
Weight
4.8 lb (2.2 kg)
Computer connection
USB Connection
Control and data processing software
Windows XP / Vista / 7 / 8/ 10
Device accessories: glass plates, prisms, cuvettes, immersion oil, gaskets, cable, etc.
