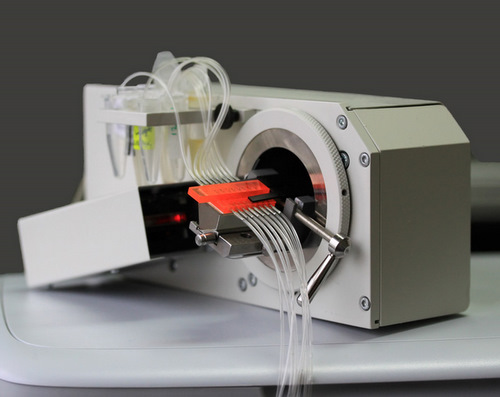

NanoSPR8 – Eight Channel Electrochemical Surface Plasmon Resonance Spectrometer
•Carrying out real time biokinetic, immunosensing and biosensing measurement techniques
•Investigation of nano-size objects like nanoparticles or nanotubes
•Studies of adsorption, corrosion, electrochemical reactions
•Thin organic and inorganic film characterization and refractive index measurements
•Gas and liquid composition detection and chemosensor applications
Description
Catalog number
Price
Eight Channel Electrochemical Surface Plasmon Resonance Spectrometer with thermostabilization and turbo mode (one full curve in less than 3 sec!). USB connection to the PC.
B00481
System Specifications
Device measurement channels:
Optical
8
Electrochemical
1
Refractive index measurement range
1.0 – 1.5
Refractive index sensitivity
0.00002
Maximum angular scan
17o
Single resonant curve measurement time
3 sec
Termostabilization up to
60oC
Deviation from set temperature
0.2oC
Maximum time resolution of kinetics measurements:
Tracing measurement mode
2 sec
Slope measurement mode
0.2 sec
Angle-of-incidence setting precision
5 angular sec
Light source
GaAs semiconductor laser (l=650 nm)
Additional ADC input (optional)
±4.5V, 12 bit resolution
Overall dimensions of the measurement unit
8.6×5.2×4 in. (215x130x100 mm)
Weight
4.8 lb (2.2 kg)
Computer connection
USB Connection
Control and data processing software
Windows XP / Vista / 7 / 8 / 10
Youtube demo

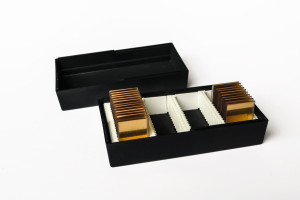

Device accessories: glass plates, prisms, cuvettes, immersion oil, gaskets, cable, etc.
